Telescopic Levelling Staff 2.5m 5-section + Level
|
|
| Levelling Staffs |
|
| Price: |
£39.95 excl VAT
£47.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|

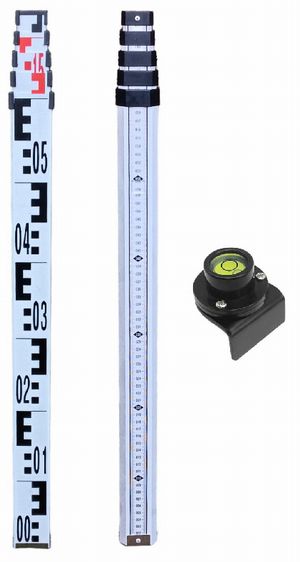

igh quality 2.5m 5-section Telescopic Levelling Staff for rotary laser levels.
Recommended for levelling measurement applications including groundworks, drainage, surveying and landscaping.
Front with E graduation in cms.
Back with graduations in mm.
All gradulation scales beginning "0" at the base.

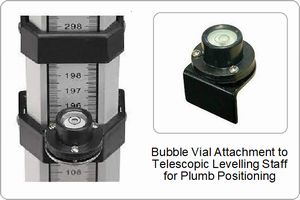

Plus, a bubble level attachment included for plumb positioning.
Measuring with a Rotary Laser:

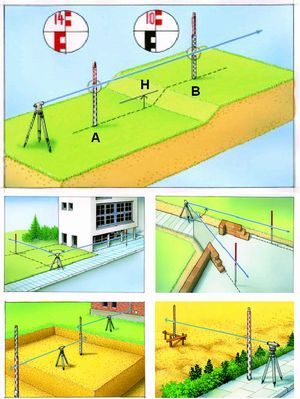

To determine the height difference please refer to the picture and operation, as below.
Set-up the the levelling staff at point A.
Align the laser receiver (on the staff) with the self-levelling rotary laser beam.
It is now possible to read off the difference in height between Point A using the laser receiver.
The staff can now be positioned at any Point B, and the second height difference measured.
Calculation of Height Difference:
Height A - Height B = Height difference H
Long Distance Scale with E-graduations:
This special form of scale graduation can easily be read even over long distances when the the cm divisions are no longer visible.
The E-blocks are 5cm high and the red and black are meter divisions.
|
|
Main Features: Telescopic Levelling Staff 2.5m 5-section + Level |
|
 |
Heavy-duty 1.0kg alloy extrusions in 5-sections with abrasion proof scales.
|
|
|
|
Long distance scale with cm E-graduations on the front for surveying.
|
|
|
|
Millimeter graduations on the back for precision height measurement.
|
|
|
|
All graduations, beginning from "0" at the base
|
|
|
|
Opening secured by automatic locking button.
|
|
|
|
Bubble level attachment included for plumb positioning.
|
|
|
|
Easily readable, sturdy construction for use on-site.
|
|
|
|

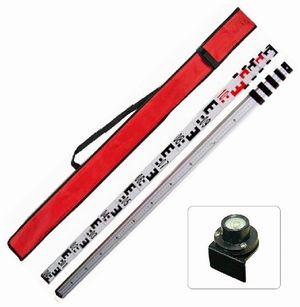

Supplied with shoulder case |
|
|
|
Technical Specification: Telescopic Levelling Staff 2.5m 5-section + Level |
|
|
Height |
1.22m to 5m
|
|
Weight |
1.9kg
|
|
Graduations |
Front E-graduations in cm
|
|
|
Back graduations in mm
|
|
Spot-On Ref No |
TLS5 |
|
| Price: |
|
£39.95 plus VAT (if applicable) |
|
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
|
|
 |
|
|
Telescopic Levelling Staff 2.5m 5-section + Level
from Laser Level's Online Shop |
|
|
|
|
 |
|
