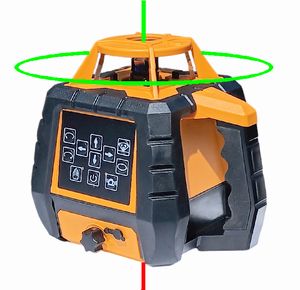

Spot-On SRL208G Rotary Laser Level Green HVP2/DG Horizontal Vertical Plumb2 & Dual Grade Ext 500m Set
|
|
| Spot-On Rotary Lasers |
|
| Price: |
£499.95 excl VAT
£599.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
New Spot-On SRL208G electronic self-levelling HVP2/DG (horizontal-vertical-plumb up & down-dual grade) green rotary laser level with NiMH rechargeable battery pack & charger, spare alkaline battery pack, receiver and remote control all contained for safe storage in a portable hard carry case.
Ultra-high accuracy ±0.5mm/10m
Range Ø 30m+ / 500m+ with Receiver (included)
New features include high-precision sensors with microprocessor control unit and anti-drift/anti-vibration/anti-wind system. Supplied with high accuracy receiver for distance levelling.
Features:
Automatic horizontal and vertical levelling, dual grade slope setting, inclined plane, scanning, aligning, plus 90° layout and plumb point positioning.
Rotating, scanning, laser point mode with permanent plumb beams (up & down), quick to set-up and easy to operate.
High quality shockproof construction with robust housing for instrument protection.
Applications:
Professional rotary laser level for exterior (and interior) applications with the receiver included to extend the working range.
Recommended for suspended ceiling and partition installations.
Also for large construction site levelling, setting-out, slopes, groundworks also landscaping and surveying over a 500m diameter area.
A combined Test Certificate & Certificate of Conformity is issued with each order.
Precision high-quality engineering from Spot-On.
Green Laser Technology
The human eye can see the different wavelengths (measuring unit ‘nm’) of the visible colour spectrum in different intensities.
The optimum is at 532 nm. Green light is situated in the middle of this range and can be perceived much brighter compared to red light.
Therefore green lasers have benefits when used without a receiver.
The visibility is much better when working in a bright environment, over long distances or on dark surfaces.
Green lasers are many times more visible than red ones - indeed indoors, up to 12 times more!
|
|
Main Features: Spot-On SRL208G Rotary Laser Level Green HVP2/DG Horizontal Vertical Plumb2 & Dual Grade Ext 500m Set |
|
 |
Fully automatic, self-levelling horizontal and vertical laser beams.
|
|
|
|
Permanent plumb and plummet spot beams.
|
|
|
|
Fast electronic levelling sensors
|
|
|
|
90° layout operation.
|
|
|
|
Four rotating speeds.
|
|
|
|
Four scanning angles.
|
|
|
|
Clockwise and anti-clockwise rotation.
|
|
|
|
Remote control dual-grade slope adjustment of X & Y axes.
|
|
|
|
Automatic drift system with visual alarm when out of level.
|
|
|
|
Mount socket 5/8in on base for tripod, laserslide (pole) or wall mount.
|
|
|
|
Low power indication.
|
|
|
|
Laser complete with receiver & clamp, remote control, magnetic target, laser enhancement glasses, rechargeable battery pack & charger, spare battery holder, packed in a padded hard carry case plus instructions.
|
|
|
|
A combined Test Certificate & Certificate of Conformity is issued with each order. |
|
|
|
Technical Specification: Spot-On SRL208G Rotary Laser Level Green HVP2/DG Horizontal Vertical Plumb2 & Dual Grade Ext 500m Set |
|
|
Working range |
>30m Ø without receiver (subject to ambient light conditions)
|
|
|
>500m Ø with receiver (included)
|
|
Accuracy |
±0.5mm/10m horizontal & vertical (±10")
|
|
Self levelling range |
±5°
|
|
Slope range |
±10% X or Y (Tilt X+Y = ±14%)
|
|
Operation |
manual & automatic (self-levelling)
|
|
Rotation |
clockwise & anti-clockwise
|
|
Drift system |
automatic
|
|
Rotation speed |
0, 60, 300, 600rpm
|
|
Scanning angles |
10°, 45°, 90°, 180°
|
|
Remote control range |
20m exterior/30m interior
|
|
Sensor |
electronic levelling system
|
|
Laser diode |
520nm <20mW green
|
|
Output power |
<1mW Class 2
|
|
Temperature range |
-10°C to +50°C
|
|
Dust/water protection |
IP54
|
|
Power supply 1 |
4 x 1.2v NiMH 3500mAh in an integrated rechargeable battery pack
|
|
Power supply 2 |
4 x 1.5v C alkaline batteries (not included), (spare battery holder included)
|
|
Operating time |
40hrs approx
|
|
Mount socket |
5/8in on base for tripod, laserslide (pole) or wall mount (horizontal levelling)
|
|
Dimensions |
160 x 160 x 185mm (laser)
|
|
Weight |
6kgs
|
|
Spot-On Part No |
SRL208G |
|
| Price: |
|
£499.95 plus VAT (if applicable) |
|
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
|
|
 |
|
|
