Spot-On SRL205GWS+ Rotary Laser Level Green HDG Horizontal & Dual Grade Ext/Int 600m GroundWorks Combo Set + Special 2026 Promotion
|
|
| Spot-On Rotary Lasers |
|
| Price: |
£449.95 excl VAT
£539.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
Please select an
option from the list below: |
|
|
|
 |
|
|
| Manufacturer: |
Spot-On |
|

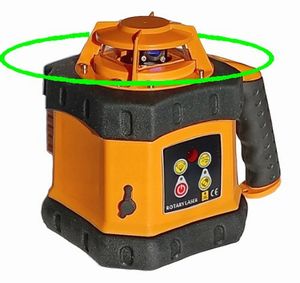

New Spot-On SRL205GWS+ GroundWorks Combo Set with the SRL205G green rotary laser level, automatic electronic self-levelling, (horizontal only) with manual dual grade X/Y slope functions, (using the receiver).
Range Ø 30m/600m with Receiver (included)
Accuracy ±0.5mm/10m (horizontal only)
Slope ±10% X or Y (Tilt X+Y ±14%)
Special 2026 Promotion:
The GroundWorks Combo Set includes the Spot-On SCLX2 LaserChalkLine Green Cross Line Laser Level Set worth £80.00 incl VAT.
A useful addition for interior horizontal and vertical levelling, also alignment jobs.
(see product details in Accessories below).

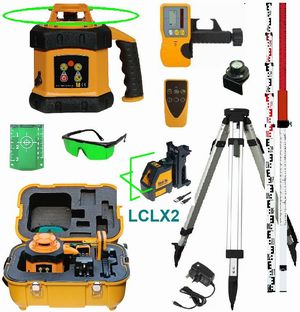

Set Contents:

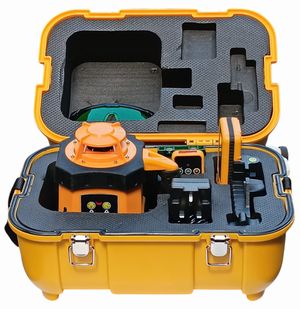

The set includes an NiMH rechargeable batteries and charger, receiver and remote control, plus a 1.50m Builder's Tripod and 5m Telescopic Levelling Staff with Level, plus the LaserChalkLine.
An alternative 'cut & fill' 2.4m Laser Levelling Staff with a FlexiSlide for millimeter readings available. For details, please click here.
The Laser Levelling Staff allows height differences to be measured directly without calculation.

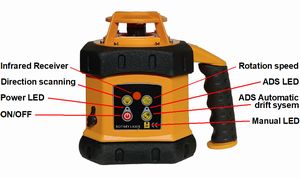

Features:
An ultra bright 20mW 360° red laser chalk line especially for large interior area visibility.
Exterior levelling with the receiver included to extend the working range.
A remote control is also included for point positioning and alignment, line scanning and XY slope setting.

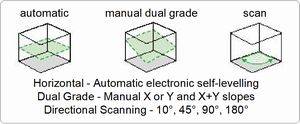

■ Automatic horizontal levelling
■ Manual single/dual slope setting
■ Rotating and point laser modes
■ Directional scanning
■ Automatic drift system (ADS)
■ Low power indication
■ Visual out of level alarm
■ Quick set-up easy to use
■ Simple 3-button operation
■ Combined Test Certificate & Certificate of Conformity included
High quality shockproof construction with robust housing and all-round rubber reinforcing for instrument protection.
Precision high-quality engineering from Spot-On
Applications:
Construction site rotary laser for horizontal levelling of interior flooring, Suspended Ceilings and Lighting.
Exterior applications include groundworks, foundations. excavations and trenching, Also, for landscaping and surveying over a 600m diameter area.
Rotary Laser only:
As an alternative, we can supply the Spot-On SRL205G Rotary Laser Level without the Tripod and Staff at £349.95 +VAT.
Please click here for full details of the Fukuda FRE205 Rotary Laser Level Horizontal/Dual-Grade.
1.50m Builder's Tripod:
High-quality medium-weight tripod. Recommended for rotary lasers on construction sites.
Robust alloy construction, with milled flat head and hollow 5/8in screw for laser plummet
Legs with quick-release clamps, steel feet and
a carrying strap.
(Please refer to Accessories as below for full details).
5m Telescopic Levelling Staff w/Level:
Robust alloy in 5-sections with abrasion proof scale.
Opening secured by automatic locking button.
Front with cm-E graduations.
Back with cm & mm graduations.
All graduations starting from the base of the staff.
(Please refer to Accessories as below for full details).
Measuring with a Rotary Laser level:
To determine the height difference in the example illustrated, the the laser with the receiver on the levelling staff is first set up at point A and the graduation measurement noted.
The staff can now be re-positioned at any Point B, and the second height difference measured.
Calculation of height difference:
Height A - Height B = Height difference ±H
|
|
|
Technical Specification: Spot-On SRL205GWS+ Rotary Laser Level Green HDG Horizontal & Dual Grade Ext/Int 600m GroundWorks Combo Set + Special 2026 Promotion |
|
|
Accuracy |
±1.0mm/10m (20") (horizontal only)
|
|
Working range Ø |
30m without receiver (subject to ambient light conditions)
|
|
|
600m with receiver (included)
|
|
Compensator range |
±5°
|
|
Slope ranges |
±10% X or Y (Tilt X+Y ±14%)
|
|
Operation |
manual & automatic (self-levelling)
|
|
Rotation |
clockwise & anti-clockwise
|
|
Drift system |
automatic
|
|
Rotation speeds |
0 60 120 300 600 rpm
|
|
Scanning angles |
0° 10° 45° 90° 180°
|
|
Positioning Spot/Point Ø |
5mm at 25m
|
|
Laser diode |
520nm Class 2 green
|
|
Laser output |
<30mW
|
|
Tripod socket |
5/8in (on level base only)
|
|
Remote control working range |
20m
|
|
Temperature range |
-20°C to +50°C
|
|
Power supply |
4 x 1.2v AA 2500mAh NiMH rechargeable batteries & charger (included)
|
|
Working time |
30h approx
|
|
Protection |
IP54 water/dust proof
|
|
Dimensions |
190 × 130 × 160mm
|
|
Weight |
1.4kg laser
|
|
|
3.6kg set
|
|
Spot-On Ref No |
SRL205GWS+ |
|
|
 |
|
|
Spot-On SRL205GWS+ Rotary Laser Level Green HDG Horizontal & Dual Grade Ext/Int 600m GroundWorks Combo Set + Special 2026 Promotion
