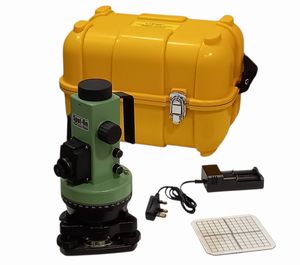

Spot-On LP200G Green Laser Optical Zenith Plummet Set
|
|
| Laser Plummets |
|
| Price: |
£449.95 excl VAT
£539.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
New Spot-On LP200G Green Laser Optical Zenith Plumb & Plummet is a precision green laser plummet which incorporates a co-axial telescope for both laser and optical observations.
The small diameter of the visible beam facilities positioning of vertically aligning reference points above or directly below.
Range ≤120m (day) ≤300 (night)
Accuracy ±2.5mm/100m / ±20"
Spot Size ≤2mm Ø at 40m
The Spot-On LP200G laser plummet is the ideal instrument for transferring reference points during high rise construction, tunnelling, towers, lift shafts, industrial installations, engineering monitoring, deformation observation and anywhere you need accurate precision vertical alignment.
Easy to use
To operate the Spot-On LP200G, you simply set the laser plummet in the horizontal plane using the three levelling screws, and switch on. Once activated, the compensator automatically finds the vertical.
The eye piece allows the engineer to conduct optical observations using the 25x magnification eye piece.
The laser spot for the down plummet can be focused and observed through the telescope for a sharper and more accurate point.
Subject to the conditions, the laser beam can be viewed up to 120m during the day or 300m during night conditions retaining an accuracy of ±2mm at 100m.
Precision high-quality engineering from Spot-On. |
|
Main Features: Spot-On LP200G Green Laser Optical Zenith Plummet Set |
|
 |
Easy to use with green laser plumb point and green laser plummet, (up and down).
|
|
|
|
Green laser spot for high visibility up to 120m in daylight.
|
|
|
|
Level vial with backlight for adjustment in bad light conditions.
|
|
|
|
Graduated 360° rotation on an integrated tribrach.
|
|
|
|
High accuracy for precision work with co-axial telescope for both laser and optical observations.
|
|
|
|
Set complete with target plate & filter, batteries, charger, instructions and hard carry case. |
|
|
|
Technical Specification: Spot-On LP200G Green Laser Optical Zenith Plummet Set |
|
|
Magnification |
25x
|
|
Objective diameter |
30mm
|
|
Level vial |
20"/2mm
|
|
|
|
|
Green Plumb Point (to Zenith):
|
|
|
Laser diode |
510nm Class 2 <5mW
|
|
Spot size Ø |
2mm at 40m
|
|
Max visible distance |
~120m (day)
|
|
|
~300m (night)
|
|
Deviation to optical axis |
<5"
|
|
Accuracy |
±2.5mm/100m
|
|
|
|
|
Power supply |
2 x 3.7v 850 mAh li-ion 14500 rechargeable batteries w/charger
|
|
Working time |
12 hrs
|
|
Temperature range |
-20°C to +50°C
|
|
Protection |
IP54 (dust/Water)
|
|
Size |
130 x 140 x 250mm
|
|
Weight |
2.8kg (laser)
|
|
|
4.3kg (set)
|
|
|
|
|
Spot-On Part No |
SLP200G |
|
| Price: |
|
£449.95 plus VAT (if applicable) |
|
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
|
|
 |
|
|
Spot-On LP200G Green Laser Optical Zenith Plummet Set
from Laser Level's Online Shop |
|
|
|
|
 |
|
Guides
available in Acrobat PDF format.
