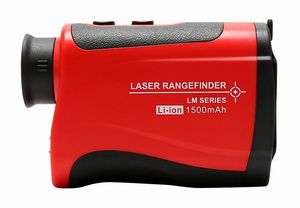

Spot-On IR Infrared Digital/Laser Range Finder 600m Pro w/Speed
|
|
| Laser Distance Meters |
|
| Price: |
£99.95 excl VAT
£119.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
New Spot-On IR Infrared Digital/Laser Range Finder 600m Pro (from Uni Trend Technology), a professional multi-functional distance measuring instrument with many easy to use practical features for the survey, golf and other sports markets.
Special Features for Surveying
■ 7X Magnification with high-quality, precise and crystal clear telescope optics
■ Focusable eyepiece enable use without glasses
■ Built-in 1500mAh lithium battery with USB charging
■ Meters or Yards option, units switchable as required
■ 5 measurement modes
Measurement Modes
SCAN
Direct Distance (Line of Sight to Target)
Horizontal Distance (Hor)
Vertical Height (Hgt)
Pitch Angle
SPEED
Speed Measurement (km/h)
Applications
Can be used for Surveying, Manufacturing, Utility Industries, Civil Engineering, Construction, Navigation, Transportation, Landscaping, Farming and Forestry....plus Golf and other sports.
Video
To see how the SRLF600PS works, please click here.
Available
Available ex stock London, complete with UK charger, USB cable and full operating instructions. |
|
|
Technical Specification: Spot-On IR Infrared Digital/Laser Range Finder 600m Pro w/Speed |
|
|
Distance range |
5m-600m
|
|
Height range |
0m-250m
|
|
Resolution |
±0.5m
|
|
Accuracy |
±1m±Range*0.2%
|
|
|
|
|
Distance units |
M/Y
|
|
Angle range |
±45° to horizontal plane
|
|
Angle resolution |
±1°
|
|
Speed range |
0-300km/h
|
|
Speed accuracy |
±5.0km/h
|
|
|
|
|
Magnification |
7x
|
|
Objective lens |
25mm Ø
|
|
Eyepiece lens |
15mm Ø
|
|
Exit pupil |
3.8mm Ø
|
|
Field of view |
6.5°
|
|
|
|
|
Laser type |
Infrared IR (invisible)
|
|
Class |
1 (eye safe)
|
|
Wavelength |
905nm
|
|
Diode power |
25W pulsed
|
|
Output power |
<25uW
|
|
Approval |
EN60825
|
|
|
|
|
Power supply |
integrated 3.7v 750mAh rechargeable lithium battery, including UK charger & USB cable
|
|
Duration |
8000 measurements
|
|
|
|
|
Protection |
IP54 dust and splash proof
|
|
Tripod socket |
1/4in
|
|
Size |
1106 x 45 x 75mm
|
|
Weight |
200g
|
|
|
|
|
Spot-On Ref No |
SLRF600PS
|
|
Uni-T Ref No |
LM600 |
|
|
 |
|
|
Spot-On IR Infrared Digital/Laser Range Finder 600m Pro w/Speed
from Laser Level's Online Shop |
|
|
|
|
 |
|
Guides
available in Acrobat PDF format.
