Spot-On GreenLiner 3D 360 Multi Line Laser Level Pro Set
|
|
| Cross & Multi Line Lasers |
|
| Price: |
£199.95 excl VAT
£239.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
New Spot-On GreenLiner 3D 360 professional self-levelling, green multi line laser level set with 3 x 360° laser lines all perpendicular to each other.
New cone laser technology improves 360° reliability with no rotating or motorised assemblies.
Set complete with magnetic wall/tripod mount with pivoting shelf, Li-ion rechargeable battery pack and charger, magnetic laser target in a soft carry case.
Accuracy ±2mm/10m
Range 30m (60m with a receiver)
Features

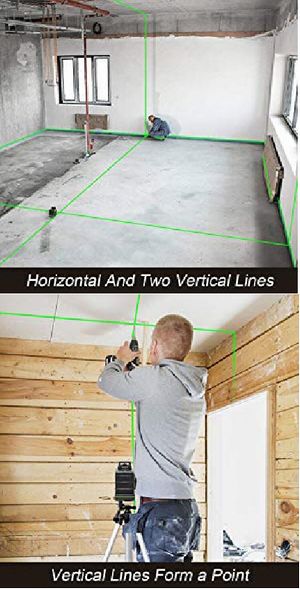

For 360° horizontal and 360° vertical levelling in 3 perpendicular planes projecting highly visible green laser lines onto the floor, wall surfaces and the ceiling with a laser cross on the floor and ceiling allowing 90° layout, squaring, alignment and up and down plumb positioning.
Precision high-quality engineering from Spot-On.
Applications
For interior applications, eg shopfitting, drywalling, partitioning, suspended ceiling, tiling plus kitchen, electrical, lighting and plumbing installations.
Manual setting mode for inclined laser lines.
Special plastering feature projecting a parallel vertical laser plane 8mm from the wall surface.
Interior distance and exterior applications with the optional GreenLiner Line Laser Receiver 60 (not included).
Pulse Function
This unit is equipped with a high-frequency (10kHz) pulse mode which can be used with the optional GreenLiner Line Laser Receiver 60 (not included) to detect the pulsating laser lines up to 60m under most light conditions.
Green Laser Technology
The distance over which a laser is visible to the eye depends on the colour or the wavelength of the laser beam.
This has to do with the physiology of the human eye – green appears brighter to us than red.
Depending on the ambient light condition, therefore, green lasers are many times more visible than red ones.
This allows applications on dark grounds, over longer distances and in very bright ambient light conditions.
Precision high-quality Class 2 (IEC/EN60825-1/2014) blue/green laser diodes from Osram in Germany.
|
|
Main Features: Spot-On GreenLiner 3D 360 Multi Line Laser Level Pro Set |
|
 |
self-levelling, green multi line laser level set with 3 x 360° laser lines all perpendicular to each other.
|
|
|
|
Laser lines switchable separately.
|
|
|
|
Self-levelling function can be switched off for manual use to project inclined laser lines.
|
|
|
|
Distance or exterior use with optional receiver.
|
|
|
|
Quick set-up and easy to operate,
|
|
|
|
Heavy-duty shockproof construction with rubberised housing.
|
|
|
|
Visual alarm, flashes when out of level.
|
|
|
|
On/off compensator transit lock.
|
|
|
|
Level base with 1/4in socket for camera tripod or laserslide.
|
|
|
|
Wall mount with both 1/4in and 5/8in sockets, 180° pivoting shelf with magnetic back and base.
|
|
|
|

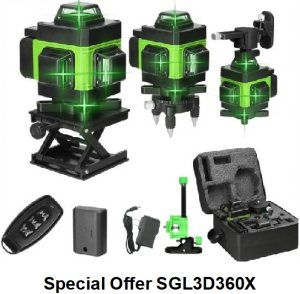

Laser supplied with rechargeable battery pack and charger, wall mount, magnetic laser target, instructions and soft carry case. |
|
|
|
Technical Specification: Spot-On GreenLiner 3D 360 Multi Line Laser Level Pro Set |
|
|
Working range radius |
30m without receiver (subject to ambient light conditions)
|
|
|
60m with receiver (not included)
|
|
Level accuracy |
±2mm/10m
|
|
Line thickness |
2mm at 10m
|
|
Self-levelling range |
±4°
|
|
Sensor |
magnetically damped pendulum
|
|
Laser diodes |
3 x 510nm <15mW Osram blue/green
|
|
Output power |
<1mW Class 2
|
|
Power supply |
3.7v 5200mAh Li-ion rechargeable battery pack & charger
|
|
Duration |
4 hours (all laser lines)
|
|
Protection |
IP54 (dust/water)
|
|
Temperature range |
-10°C to +50°C
|
|
Size |
90 x 65 x 115mm
|
|
Weight |
0.53kg (instrument w/battery pack)
|
|
|
1.28kg Set
|
|
Spot-On Part No |
SGL3D360 |
|
| Price: |
|
£199.95 plus VAT (if applicable) |
|
|
| Buy Online: |
|
|
| Manufacturer: |
Spot-On |
|
|
|
 |
|
|
Spot-On GreenLiner 3D 360 Multi Line Laser Level Pro Set
from Laser Level's Online Shop |
|
|
|
|
 |
|
Guides
available in Acrobat PDF format.
