Fukuda TileLiner 3D 360 Multi Line Laser Level Set
|
|
| Square Lasers |
|
| Price: |
£149.95 excl VAT
£179.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Fukuda Laser |
|
New Fukuda TileLiner 3D 360 Multi Line Set,
self-levelling 3D laser level set with 3 x 360° laser lines all perpendicular to each other.
New cone laser technology improves 360° reliability with no rotating or motorized assemblies.
Set complete with magnetic wall mount with elevating shelf plus a magnetic target and laser enhancement glasses in a hard carry case.
For 360° horizontal and 360° vertical levelling in 2 perpendicular planes projecting highly visible laser lines onto the floor, wall surfaces and the ceiling with a laser cross both on the floor and ceiling allowing 90° layout, squaring, alignment and plumb up and down positioning.
Accuracy ±2mm/10m
Range 20m (50mwith a receiver)

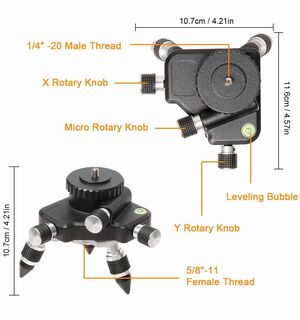

The set includes a mini tripod base with 3D levelling and 360° alignment, also as an interface to mount the laser onto an elevating tripod. Set complete with a magnetic target, batteries and a soft protective storage case.
For professional interior applications, eg shopfitting, drywalling, partitioning, tiling plus kitchen, electrical, lighting and plumbing installations.
Precision high-quality engineering from Fukuda Laser.
Pulse Function:
This unit is equipped with a high-frequency (10kHz) pulse mode which can be used with the optional RedLiner Receiver 50 (not included) to detect the pulsating laser lines up to 50m under most light conditions.
The pulse mode is activated when the laser is switched on and any one or more lines can be detected.
|
|
Main Features: Fukuda TileLiner 3D 360 Multi Line Laser Level Set |
|
 |
Self-levelling 3D 360° multi line laser level.
|
|
|
|
Projects highly visible 4 Horizontal and 4 vertical 360° red laser lines.
|
|
|
|
Forms 4 red laser crosses on wall surfaces.
|
|
|
|
Projects red cross lines to floor and ceiling for up and down plumb positioning.
|
|
|
|
Laser lines switchable separately.
|
|
|
|
Self-levelling function can be switched off for manual use to project inclined laser lines.
|
|
|
|
Quick set-up and easy to operate.
|
|
|
|
Heavy-duty shockproof construction with rubberised housing.
|
|
|
|
Audible and visual alarm when out of level.
|
|
|
|
On/off compensator transit lock.
|
|
|
|
1/4in thread for the mini tripod base (included) or camera tripod, elevating tripod or laserslide.
|
|
|
|
Laser supplied with batteries, mini tripod mount, magnetic target, soft case and instruction manual. |
|
|
|
Technical Specification: Fukuda TileLiner 3D 360 Multi Line Laser Level Set |
|
|
Working range radius |
20m (subject to ambient light conditions)
|
|
Accuracy |
±2mm/10m
|
|
Self-levelling range |
±4°
|
|
Sensor |
magnetically damped pendulum
|
|
Laser diodes |
3 x 635nm <80mW
|
|
Output power |
<1mW Class 2M
|
|
Power supply |
4 x 1.5v AA Alkaline batteries included
|
|
Duration |
8 hours
|
|
Protection |
IP54 (dust/water)
|
|
Temperature range |
-10°C to +50°C
|
|
Size |
85 x 120 x 130mm
|
|
Weight |
0.8kg (instrument w/batteries)
|
|
|
1.5kg (set)
|
|
Fukuda Laser |
MWT93TR |
|
| Price: |
|
£149.95 plus VAT (if applicable) |
|
|
| Buy Online: |
|
|
| Manufacturer: |
Fukuda Laser |
|
|
|
 |
|
|
Fukuda TileLiner 3D 360 Multi Line Laser Level Set
from Laser Level's Online Shop |
|
|
|
|
 |
|
