Fukuda RedLiner X2 P5 Cross, Plumb & Multi Point Laser Level Set
|
|
| Multi Point Laser |
|
| Price: |
£149.95 excl VAT
£179.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Fukuda Laser |
|
New Fukuda X2P5 Cross & Multi Point Laser Level Set. Self-levelling, red cross line plus 5 red laser spots all 90° to each other: up, down, left, right and back.
Laser level set with a magnetic wall mount, plus magnetic target and batteries in a soft carry case.
For horizontal and vertical levelling with extra wide-angle extremely visible laser beams plus the vertical line projecting far beyond the zenith point overhead.
Plus, the multi-point perpendicular laser beams projecting 5 red laser spots all at right-angles to each other: up, down, left, right and back, allowing 90° layout, squaring, aligning and plumb positioning.
Range 25m Green Lines (50m with a receiver).
Range 50m Red Spots
Accuracy ±2mm/10m
For professional interior applications, projecting extremely visible green lines onto the floor, wall surface and the ceiling plus ultra bright perpendicular red spots for distance alignment, 90° layout and squaring.
Outdoor applications with the optional GreenLiner Receiver 50.
Precision high-quality engineering from Fukuda Laser.
Pulse Function:
This unit is equipped with a high-frequency (10kHz) pulse mode which can be used with the optional GreenLiner Receiver 50 to detect the pulsating laser lines up to 50m under most light conditions.
Video - Green Laser v Red Laser
Click here for see this interesting practical test.
|
|
Main Features: Fukuda RedLiner X2 P5 Cross, Plumb & Multi Point Laser Level Set |
|
 |
Self-levelling cross-line and multi-point laser level.
|
|
|
|
1 Horizontal and 1 vertical line to form a green laser cross.
|
|
|
|
5 perpendicular red laser spots, up, down, left, right and back.
|
|
|
|
7 simultaneous output beams.
|
|
|
|
Laser lines and spots switchable separately.
|
|
|
|
Self-levelling function can be switched off for manual use to project inclined laser lines.
|
|
|
|
Quick set-up and easy to operate,
|
|
|
|
Projects extremely highly visible extra wide angle horizontal and vertical green laser lines plus 5 ultra bright red laser spots.
|
|
|
|
Heavy-duty shockproof construction with rubberised housing.
|
|
|
|
Outdoor Use with optional receiver.
|
|
|
|
Audible and visual alarm when out of level.
|
|
|
|
On/off compensator transit lock.
|
|
|
|
1/4in thread for camera tripod or laserslide.
|
|
|
|
Magnetic wall mount with elevating shelf and 100mm adjustment range.
|
|
|
|
Wall mount with 1/4in screw on the shelf for the laser and both 1/4in and 5/8in sockets for tripod or laserslide, plus a keyhole for screw fixing to wall.
|
|
|
|

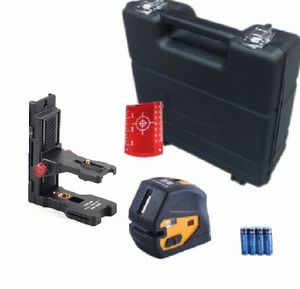

Laser supplied with batteries, wall bracket & magnetic L-mount, magnetic targets and hard carry case. |
|
|
|
Technical Specification: Fukuda RedLiner X2 P5 Cross, Plumb & Multi Point Laser Level Set |
|
|
Working range radius |
Green Lines 25m without receiver (subject to ambient light conditions)
|
|
|
50m with receiver (not included)
|
|
Fan angles |
180° horizontal
|
|
|
150° vertical
|
|
Working range |
Red Spots 50m (subject to ambient light conditions)
|
|
Accuracy |
±2mm/10m
|
|
Self-levelling range |
±4°
|
|
Sensor |
magnetically damped pendulum
|
|
Laser diodes |
2 x 515nm <30mW (green lines)
|
|
|
5 x 635nm <15mW (red spots)
|
|
Output power |
<1mW Class 3R (green)
|
|
|
<1mW Class 2M (red)
|
|
Power supply |
4 x 1.5v AA Alkaline batteries included
|
|
Duration |
8 hours
|
|
Protection |
IP54 (dust/water)
|
|
Temperature range |
-10°C to +45°C
|
|
Size |
130 x 105 x 70mm
|
|
Weight |
0.8kg (instrument w/batteries)
|
|
|
2.4kg (set)
|
|
Laser Level No |
FCPX2P5
|
|
Fukuda Laser No |
FDG232R |
|
| Price: |
|
£149.95 plus VAT (if applicable) |
|
|
| Buy Online: |
|
|
| Manufacturer: |
Fukuda Laser |
|
|
|
 |
|
|
Fukuda RedLiner X2 P5 Cross, Plumb & Multi Point Laser Level Set
from Laser Level's Online Shop |
|
|
|
|
 |
|
