Fukuda RedLiner L3 PS Multi Line Laser Level Pro Set
|
|
| Cross & Multi Line Lasers |
|
| Price: |
£149.95 excl VAT
£179.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
| Availability: |
IN STOCK - London |
|
| Buy Online: |
|
|
| Manufacturer: |
Fukuda Laser |
|
New Fukuda Laser FML3P professional self-levelling multi line laser level set with plumb function.
For horizontal and vertical levelling with up and down plumb positioning plus an extra vertical line at 90° for square layout.
Accuracy ±2mm/10m
Range 20m (50m with a receiver)
For interior applications, projects highly visible cross lines onto the wall surface, laser cross on the ceiling, plumb spot down and laser lines on the floor at 90°.

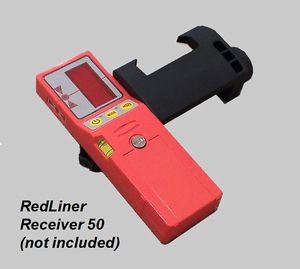

Outdoor applications with the optional RedLiner Receiver 50 (not included).
Innovative feature:
The Fukuda Redliner 3 Pro laser incorporates 2 red laser spots in the primary vertical line.
These laser spots offer enhanced visibilty up to 30m and enable easier line location in bright light conditions.
Pulse Function:
For outdoor levelling the unit is equipped with a high-frequency (10kHz) pulse mode which can be used with the Fukuda FD9R Line Laser Receiver 50 (included) to detect the pulsating laser lines up to 50m under most light conditions.
Recommended for Tiling, Kitchen and Electrical installation also office partitioning jobs.
Precision high-quality engineering from Fukuda Laser.
|
|
Main Features: Fukuda RedLiner L3 PS Multi Line Laser Level Pro Set |
|
 |
Self-levelling multi line red laser.
|
|
|
|
Projects wide angle horizontal laser line and 2 vertical perpendicular laser lines.
|
|
|
|
Laser plumb point down and laser cross on the ceiling.
|
|
|
|
2 red laser spots in the primary vertical line to enhanced visibility.
|
|
|
|
Laser lines switchable separately.
|
|
|
|
Audible and visual alarm when out of level.
|
|
|
|
On/off compensator transit lock.
|
|
|
|
Laser housing with graduated 360° rotation on an integrated floor tripod with fine adjustment setting.
|
|
|
|
Floor tripod with adjustable rubber-capped legs to prevent slipping.
|
|
|
|
5/8in thread for the elevating tripod or optional laserslide and wall mount with the adapter.
|
|
|
|
Illuminated circular bubble level for pre-adjustment.
|
|
|
|
Distance or outdoor use with optional receiver.
|
|
|
|
Laser supplied with laser enhancement glasses, magnetic target, tripod adapter, batteries, hard carry case and instruction manual. |
|
|
|
Technical Specification: Fukuda RedLiner L3 PS Multi Line Laser Level Pro Set |
|
|
Working range radius |
20m without receiver (subject to ambient light conditions)
|
|
|
50m with receiver (not included)
|
|
Visibilty |
>30m with laser spots
|
|
Accuracy |
±2mm/10m (±40")
|
|
Self-levelling range |
±3°
|
|
Sensor |
magnetically damped pendulum compensator
|
|
Laser diodes |
3 x 635nm <10mW
|
|
|
1 x 650nm <1mW
|
|
Output power |
<1mW Class 2M
|
|
Power supply |
4 x 1.5v AA Alkaline batteries included
|
|
Operating time |
8hrs (with all lines switched on)
|
|
Protection |
IP54 (dust/water)
|
|
Temperature range |
-10°C to +45°C
|
|
Weight |
1.1kg (instrument w/batteries)
|
|
Spot-On Ref |
FML3PS
|
|
Fukuda Laser |
EK211QA |
|
